End dump trailer for sale is a large with an automatic unloading function, and its compartment is also connected to the trailer above the cab through a semi-trailer. Hydraulic dump trailer is usually used to transport bulk items, such as coal, sand, cement, etc. There is an unloading port at the bottom of the carriage, and the goods can be dumped out through the hydraulic system, so as to realize automatic unloading.
Hydraulic End Dump Trailer for Sale | Semi Dump Trailer Capacity
Hydraulic End Dump Trailer for Sale | Semi Dump Trailer Capacity

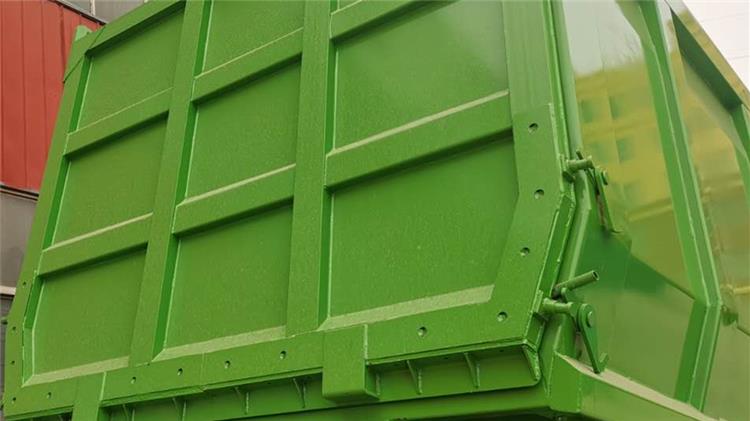

The hydraulic dump trailer back wall has double locks,which promise the cargo won't open even with huge bumps.

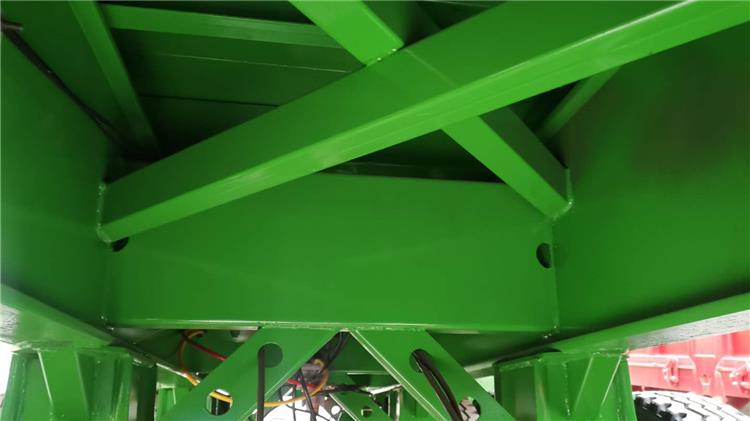

The end dump trailer for sale main beam of our 50 tons dump trailer,the height and the thickness of middle plate is 480 mm and 6 mm;upper plate is 12 mm thick;bottom plate is 14 mm thick,whichwill not deform even if it carries 60 tons.

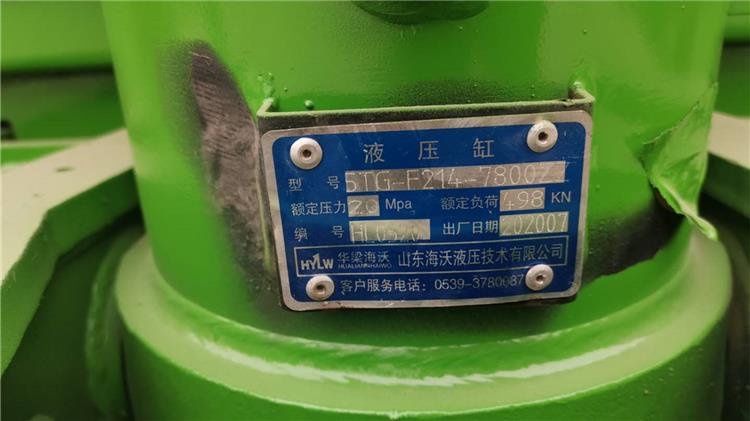

Semi dump trailer capacity use 180 Hydraulic Cylinder with a wider diameter, stronger lifting capacity which makes the lifting more stable and does not easy to roll over.

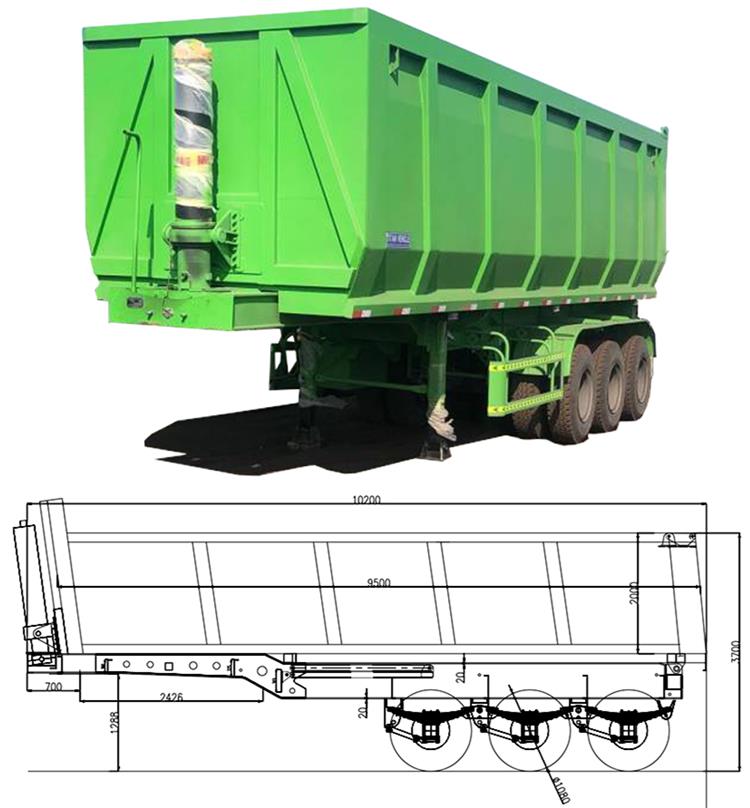

Dimension: 10200mmx2500mm x3700mm
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Total volume(m³): 40 ton
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
